Features and Benefits

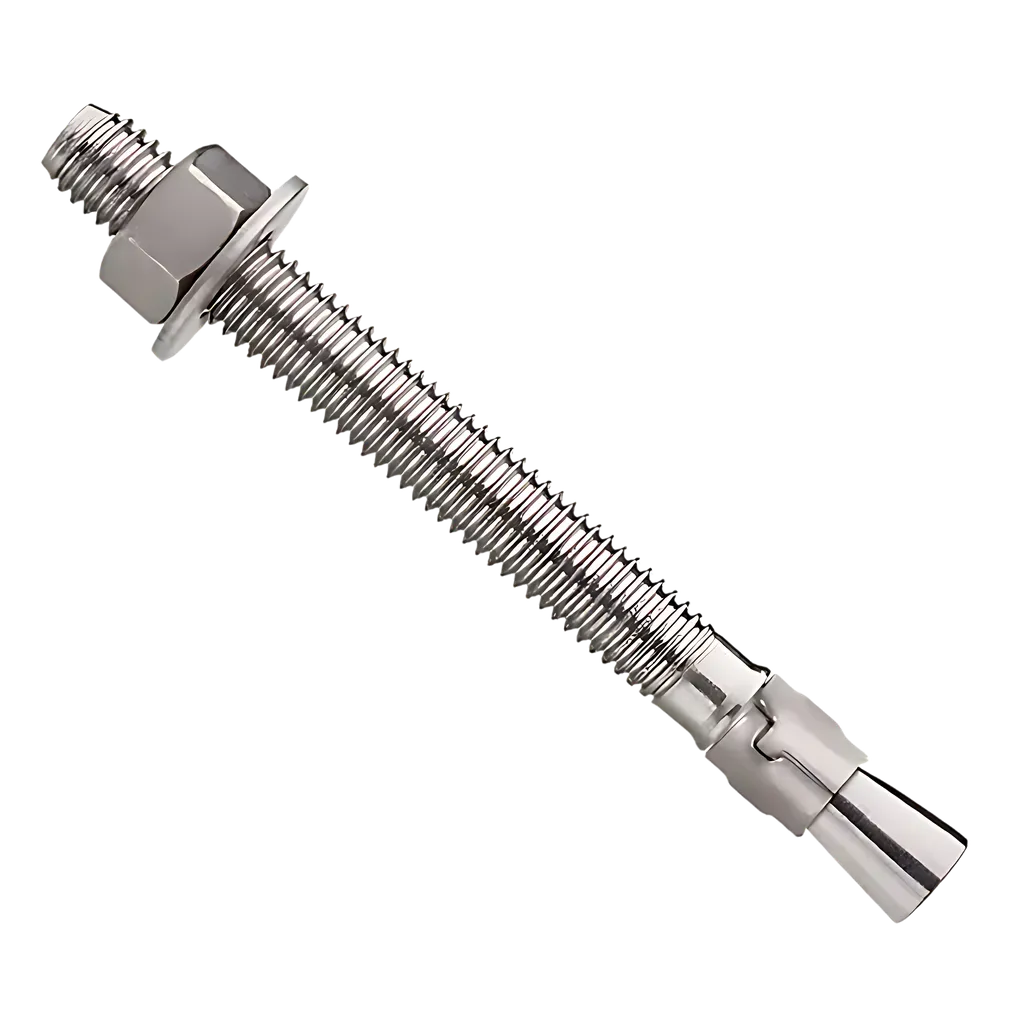

- Fully threaded, medium duty all-purpose anchor
- Length ID stamped on each threaded anchor
- Anchors can be installed through the fixture for hole spotting not required
- Chamfered impact section prevents damage to threads
- Clip design prevents spinning during installation
- Nominal drill bit diameter same as anchor diameter
General Applications
- Lighting standards and base plates
- Sills and support ledgers
- Retrofit projects and machinery anchorage
- Food and beverage facilities
- Water treatment plants and other marine applications
Approvals
- Tested in accordance with ASTM E488 and AC01 criteria
- FM Global (Factory Mutual) – File No. J.I. OK3A9.AH
- Underwriters Laboratory (UL Listed) – File No. EX1289
- Federal GSA Specification
- Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
Suitable Base Materials
- Normal-weight Concrete
- Structural Lightweight Concrete
- Grouted Concrete Masonry (CMU)
