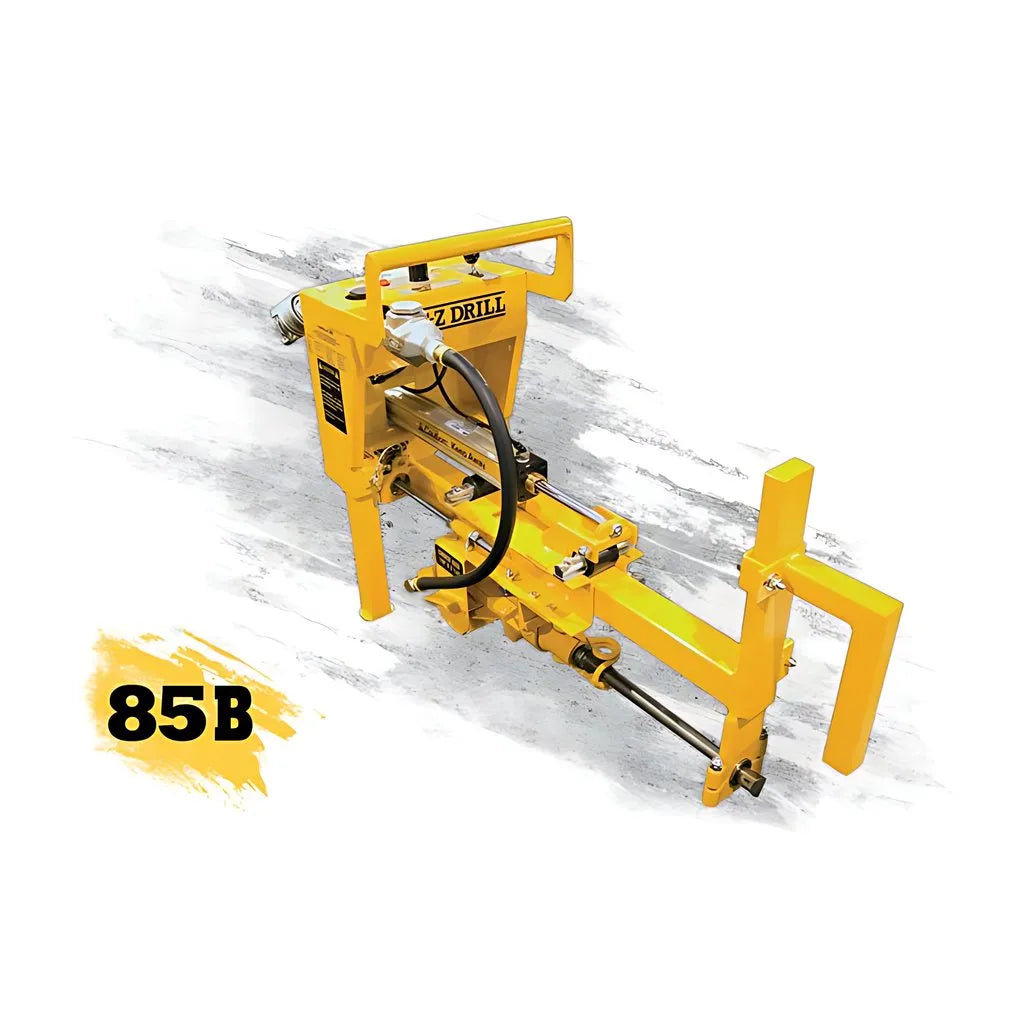

The 85B on-grade drill can work in areas as tight as a 30 inch trench, and it can center on slabs as thick as 2 feet. Operators can equip the drill with 5/8- to 2-inch diameter bits and drill to 9-inch depths. The compact unit weighs only 85 pounds, so it’s easy to reposition, load and unload. Install E-Z Drill’s optional wheels for even faster repositioning. And for greater versatility on projects that require vertical drilling, users also can install the optional vertical conversion kit.

Horizontal Position

• Lower Length (A): 30 in (76.2 cm)
• Width: 12 in (30.5 cm)
• Height (B): 22 in (55.9 cm)
• Weight: 85 lbs (38.6 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 1 in (2.5 cm)
• Drill Depth (std.): 9 in (20.3 cm)
• Drill Bit Diameter: 5/8 in to 2 in (15.9 mm to 50.8 mm)
• Drill Motor (pneumatic): CP 14
• Drill Motor Weight: 16 lbs (7.62 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 32 cfm (0.9 m3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 14 fpb (19 J)
• Hammer Speed: 2900 bpm
• Speed: 150 rpm

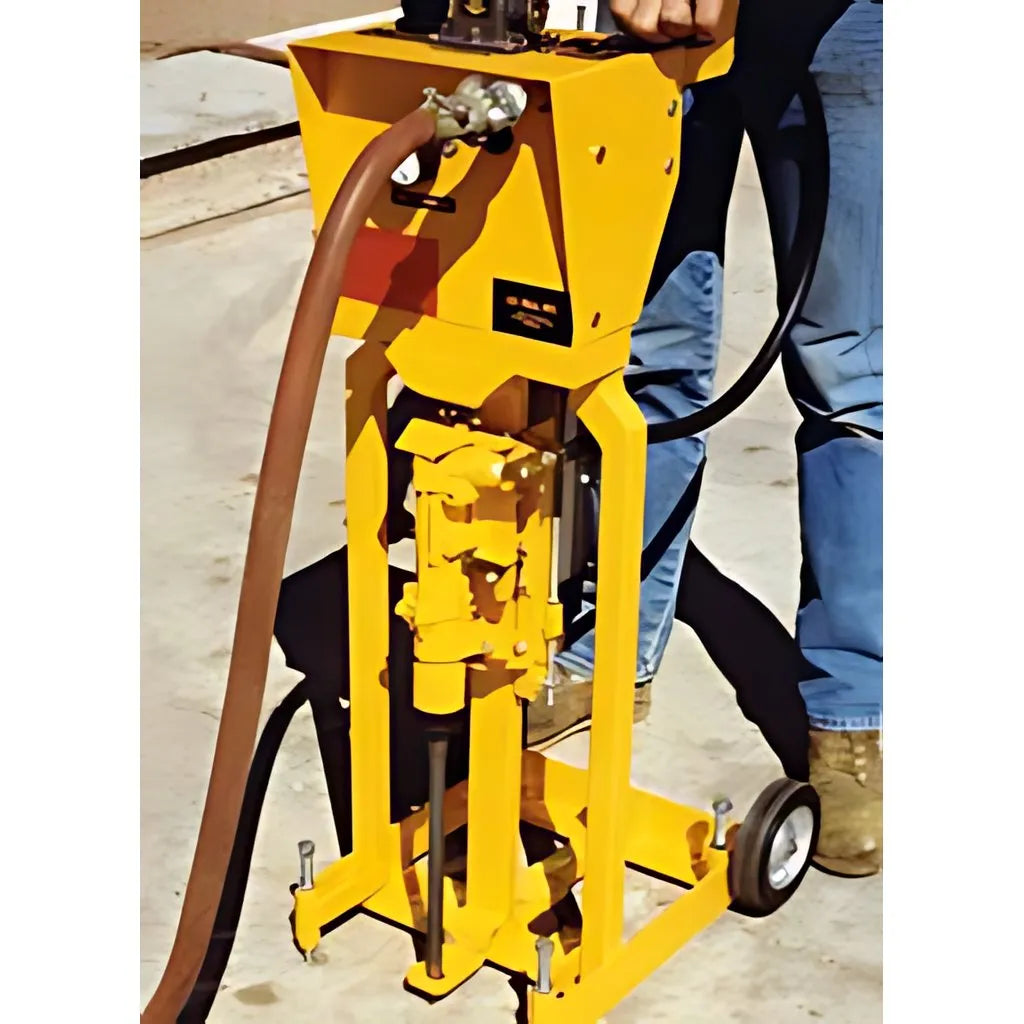

Vertical Position

• Lower Length (A): N/A
• Width: 12 in (30.5 cm)
• Height (B): N/A
• Weight: 85 lbs (38.6 kg)
• Drill Distance From Corner: N/A
• Drill Distance From Ground: Up to 6 in (15.2 cm)
• Drill Depth (std.): 9 in (20.3 cm)
• Drill Bit Diameter: 5/8 in to 2 in (15.9 mm to 50.8 mm)
• Drill Motor (pneumatic): CP 14
• Drill Motor Weight: 16 lbs (7.62 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 32 cfm (0.9 m3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 14 fpb (19 J)
• Hammer Speed: 2900 bpm
• Speed: 150 rpm
